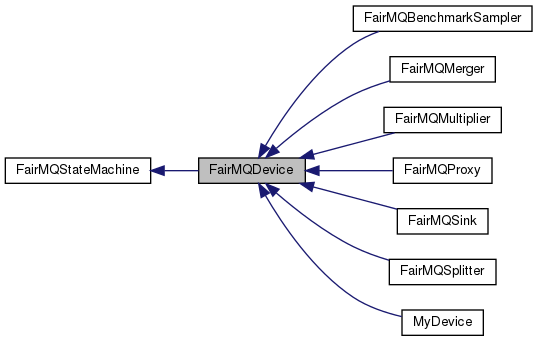

Inheritance diagram for FairMQDevice:

[legend]

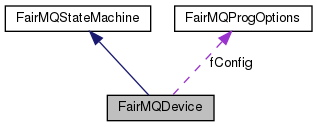

Collaboration diagram for FairMQDevice:

Public Member Functions
	FairMQDevice ()
	Default constructor.

	FairMQDevice (FairMQProgOptions &config)
	Constructor with external FairMQProgOptions.

	FairMQDevice (const fair::mq::tools::Version version)
	Constructor that sets the version.

	FairMQDevice (FairMQProgOptions &config, const fair::mq::tools::Version version)
	Constructor that sets the version and external FairMQProgOptions.

	FairMQDevice (const FairMQDevice &)=delete
	Copy constructor (disabled)

FairMQDevice	operator= (const FairMQDevice &)=delete
	Assignment operator (disabled)

virtual	~FairMQDevice ()
	Default destructor.

void	CatchSignals ()
	Catches interrupt signals (SIGINT, SIGTERM)

virtual void	LogSocketRates ()
	Outputs the socket transfer rates.

void	SortChannel (const std::string &name, const bool reindex=true)

template<typename Serializer , typename DataType , typename... Args>
void	Serialize (FairMQMessage &msg, DataType &&data, Args &&... args) const

template<typename Deserializer , typename DataType , typename... Args>
void	Deserialize (FairMQMessage &msg, DataType &&data, Args &&... args) const

int	Send (FairMQMessagePtr &msg, const std::string &channel, const int index=0, int sndTimeoutInMs=-1)

int	Receive (FairMQMessagePtr &msg, const std::string &channel, const int index=0, int rcvTimeoutInMs=-1)

int	SendAsync (FairMQMessagePtr &msg, const std::string &channel, const int index=0) __attribute__((deprecated("For non-blocking Send

int	ReceiveAsync (FairMQMessagePtr &msg, const std::string &channel, const int index=0) __attribute__((deprecated("For non-blocking Receive

int64_t	Send (FairMQParts &parts, const std::string &channel, const int index=0, int sndTimeoutInMs=-1)

int64_t	Receive (FairMQParts &parts, const std::string &channel, const int index=0, int rcvTimeoutInMs=-1)

int64_t	SendAsync (FairMQParts &parts, const std::string &channel, const int index=0) __attribute__((deprecated("For non-blocking Send

int64_t	ReceiveAsync (FairMQParts &parts, const std::string &channel, const int index=0) __attribute__((deprecated("For non-blocking Receive

auto	Transport () const -> FairMQTransportFactory *
	Getter for default transport factory.

template<typename... Args>
FairMQMessagePtr	NewMessage (Args &&... args)

template<typename... Args>
FairMQMessagePtr	NewMessageFor (const std::string &channel, int index, Args &&... args)

template<typename T >
FairMQMessagePtr	NewStaticMessage (const T &data)

template<typename T >
FairMQMessagePtr	NewStaticMessageFor (const std::string &channel, int index, const T &data)

template<typename T >
FairMQMessagePtr	NewSimpleMessage (const T &data)

template<typename T >
FairMQMessagePtr	NewSimpleMessageFor (const std::string &channel, int index, const T &data)

FairMQUnmanagedRegionPtr	NewUnmanagedRegion (const size_t size)

FairMQUnmanagedRegionPtr	NewUnmanagedRegionFor (const std::string &channel, int index, const size_t size, FairMQRegionCallback callback=nullptr)

template<typename ... Ts>
FairMQPollerPtr	NewPoller (const Ts &... inputs)

FairMQPollerPtr	NewPoller (const std::vector< FairMQChannel *> &channels)

void	WaitForInitialValidation () __attribute__((deprecated("This method will have no effect in future versions and will be removed. Instead subscribe for state changes and inspect configuration values.")))
	Waits for the first initialization run to finish.

std::shared_ptr< FairMQTransportFactory >	AddTransport (const fair::mq::Transport transport)

void	SetConfig (FairMQProgOptions &config)
	Assigns config to the device.

FairMQProgOptions *	GetConfig () const
	Get pointer to the config.

template<typename T >
void	OnData (const std::string &channelName, bool(T::*memberFunction)(FairMQMessagePtr &msg, int index))

void	OnData (const std::string &channelName, InputMsgCallback callback)

template<typename T >
void	OnData (const std::string &channelName, bool(T::*memberFunction)(FairMQParts &parts, int index))

void	OnData (const std::string &channelName, InputMultipartCallback callback)

FairMQChannel &	GetChannel (const std::string &channelName, const int index=0)

virtual void	RegisterChannelEndpoints ()

bool	RegisterChannelEndpoint (const std::string &channelName, uint16_t minNumSubChannels=1, uint16_t maxNumSubChannels=1)

void	PrintRegisteredChannels ()

void	SetId (const std::string &id)

std::string	GetId ()

const fair::mq::tools::Version	GetVersion () const

void	SetNumIoThreads (int numIoThreads)

int	GetNumIoThreads () const

void	SetNetworkInterface (const std::string &networkInterface)

std::string	GetNetworkInterface () const

void	SetDefaultTransport (const std::string &name)

std::string	GetDefaultTransport () const

void	SetInitializationTimeoutInS (int initializationTimeoutInS)

int	GetInitializationTimeoutInS () const

void	SetTransport (const std::string &transport)

std::string	GetTransportName () const
	Gets the default transport name.

void	SetRawCmdLineArgs (const std::vector< std::string > &args)

std::vector< std::string >	GetRawCmdLineArgs () const

void	RunStateMachine ()

template<class Rep , class Period >
bool	WaitFor (std::chrono::duration< Rep, Period > const &duration)

void	AddChannel (const std::string &channelName, const FairMQChannel &channel)

Public Member Functions inherited from FairMQStateMachine
int	GetInterfaceVersion () const

bool	ChangeState (int event)

bool	ChangeState (const std::string &event)

void	WaitForEndOfState (int event)

void	WaitForEndOfState (const std::string &event)

bool	WaitForEndOfStateForMs (int event, int durationInMs)

bool	WaitForEndOfStateForMs (const std::string &event, int durationInMs)

void	SubscribeToStateChange (const std::string &key, std::function< void(const State)> callback)

void	UnsubscribeFromStateChange (const std::string &key)

void	CallStateChangeCallbacks (const State state) const

std::string	GetCurrentStateName () const

int	GetCurrentState () const

bool	CheckCurrentState (int state) const

bool	CheckCurrentState (const std::string &state) const

void	ProcessWork ()

Static Public Member Functions
static bool	SortSocketsByAddress (const FairMQChannel &lhs, const FairMQChannel &rhs)

Static Public Member Functions inherited from FairMQStateMachine
static std::string	GetStateName (const State)

Public Attributes
int use timeout version with timeout	of: Send(msg

int use timeout version with timeout	channelA

int use timeout version with timeout	subchannelIndex

int use timeout version with timeout	timeout

int64_t use timeout version with timeout	of: Send(parts

int64_t use timeout version with timeout	channelA

int64_t use timeout version with timeout	subchannelIndex

int64_t use timeout version with timeout	timeout

std::unordered_map< std::string, std::vector< FairMQChannel > >	fChannels
	Device channels.

std::unique_ptr< FairMQProgOptions >	fInternalConfig
	Internal program options configuration.

FairMQProgOptions *	fConfig
	Pointer to config (internal or external)

Protected Member Functions
virtual void	Init ()
	Additional user initialization (can be overloaded in child classes). Prefer to use InitTask().

virtual void	InitTask ()
	Task initialization (can be overloaded in child classes)

virtual void	Run ()
	Runs the device (to be overloaded in child classes)

virtual void	PreRun ()
	Called in the RUNNING state once before executing the Run()/ConditionalRun() method.

virtual bool	ConditionalRun ()
	Called during RUNNING state repeatedly until it returns false or device state changes.

virtual void	PostRun ()
	Called in the RUNNING state once after executing the Run()/ConditionalRun() method.

virtual void	Pause ()
	Handles the PAUSE state.

virtual void	ResetTask ()
	Resets the user task (to be overloaded in child classes)

virtual void	Reset ()
	Resets the device (can be overloaded in child classes)

Protected Attributes
std::shared_ptr< FairMQTransportFactory >	fTransportFactory
	Default transport factory.

std::unordered_map< fair::mq::Transport, std::shared_ptr< FairMQTransportFactory > >	fTransports
	Container for transports.

std::string	fId
	Device ID.

Friends
class	FairMQChannel

Additional Inherited Members
Public Types inherited from FairMQStateMachine
enum	Event { INIT_DEVICE, internal_DEVICE_READY, INIT_TASK, internal_READY, RUN, PAUSE, STOP, RESET_TASK, RESET_DEVICE, internal_IDLE, END, ERROR_FOUND }

enum	State { OK, Error, IDLE, INITIALIZING_DEVICE, DEVICE_READY, INITIALIZING_TASK, READY, RUNNING, PAUSED, RESETTING_TASK, RESETTING_DEVICE, EXITING }

Member Function Documentation

◆ AddTransport()

shared_ptr< FairMQTransportFactory > FairMQDevice::AddTransport ( const fair::mq::Transport transport )

Adds a transport to the device if it doesn't exist

Parameters

transport Transport string ("zeromq"/"nanomsg"/"shmem")

◆ Receive() [1/2]

int FairMQDevice::Receive	(	FairMQMessagePtr &	msg,
		const std::string &	channel,
		const int	index = `0`,
		int	rcvTimeoutInMs = `-1`
	)

inline

Shorthand method to receive msg on chan at index i

Parameters

msg	message reference
chan	channel name
i	channel index
rcvTimeoutInMs	receive timeout in ms, -1 will wait forever (or until interrupt (e.g. via state change)), 0 will not wait (return immediately if cannot receive)

Returns: Number of bytes that have been received. -2 if reading from the queue was not possible or timed out. -1 if there was an error.

◆ Receive() [2/2]

int64_t FairMQDevice::Receive	(	FairMQParts &	parts,
		const std::string &	channel,
		const int	index = `0`,
		int	rcvTimeoutInMs = `-1`
	)

inline

Shorthand method to receive FairMQParts on chan at index i

Parameters

parts	parts reference
chan	channel name
i	channel index
rcvTimeoutInMs	receive timeout in ms, -1 will wait forever (or until interrupt (e.g. via state change)), 0 will not wait (return immediately if cannot receive)

Returns: Number of bytes that have been received. -2 if reading from the queue was not possible or timed out. -1 if there was an error.

◆ Send() [1/2]

int FairMQDevice::Send	(	FairMQMessagePtr &	msg,
		const std::string &	channel,
		const int	index = `0`,
		int	sndTimeoutInMs = `-1`
	)

inline

Shorthand method to send msg on chan at index i

Parameters

msg	message reference
chan	channel name
i	channel index
sndTimeoutInMs	send timeout in ms, -1 will wait forever (or until interrupt (e.g. via state change)), 0 will not wait (return immediately if cannot send)

Returns: Number of bytes that have been queued. -2 If queueing was not possible or timed out. -1 if there was an error.

◆ Send() [2/2]

int64_t FairMQDevice::Send	(	FairMQParts &	parts,
		const std::string &	channel,
		const int	index = `0`,
		int	sndTimeoutInMs = `-1`
	)

inline

Shorthand method to send FairMQParts on chan at index i

Parameters

parts	parts reference
chan	channel name
i	channel index
sndTimeoutInMs	send timeout in ms, -1 will wait forever (or until interrupt (e.g. via state change)), 0 will not wait (return immediately if cannot send)

Returns: Number of bytes that have been queued. -2 If queueing was not possible or timed out. -1 if there was an error.

◆ SetTransport()

void FairMQDevice::SetTransport ( const std::string & transport )

inline

Sets the default transport for the device

Parameters

transport Transport string ("zeromq"/"nanomsg"/"shmem")

◆ SortChannel()

void FairMQDevice::SortChannel	(	const std::string &	name,
		const bool	reindex = `true`
	)

Sorts a channel by address, with optional reindexing of the sorted values

Parameters

name	Channel name
reindex	Should reindexing be done

◆ SortSocketsByAddress()

bool FairMQDevice::SortSocketsByAddress	(	const FairMQChannel &	lhs,
		const FairMQChannel &	rhs
	)

static

Implements the sort algorithm used in SortChannel()

Parameters

lhs	Right hand side value for comparison
rhs	Left hand side value for comparison

◆ WaitFor()

template<class Rep , class Period >

bool FairMQDevice::WaitFor ( std::chrono::duration< Rep, Period > const & duration )

inline

Wait for the supplied amount of time or for interruption. If interrupted, returns false, otherwise true.

Parameters

duration wait duration

The documentation for this class was generated from the following files:

fairmq/FairMQDevice.h
fairmq/FairMQDevice.cxx
