fair::mq::Plugin Class Reference

Base class for FairMQ plugins. More...

#include <fairmq/Plugin.h>

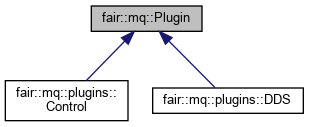

Inheritance diagram for fair::mq::Plugin:

Public Types
using	ProgOptions = boost::optional< boost::program_options::options_description >
using	Version = tools::Version
using	DeviceState = fair::mq::PluginServices::DeviceState
using	DeviceStateTransition = fair::mq::PluginServices::DeviceStateTransition

Public Member Functions
	Plugin (const std::string name, const Version version, const std::string maintainer, const std::string homepage, PluginServices *pluginServices)
	Plugin (const Plugin &)=delete
Plugin	operator= (const Plugin &)=delete
auto	GetName () const -> const std::string &
auto	GetVersion () const -> const Version
auto	GetMaintainer () const -> const std::string &
auto	GetHomepage () const -> const std::string &
auto	ToDeviceState (const std::string &state) const -> DeviceState
auto	ToDeviceStateTransition (const std::string &transition) const -> DeviceStateTransition
auto	ToStr (DeviceState state) const -> std::string
auto	ToStr (DeviceStateTransition transition) const -> std::string
auto	GetCurrentDeviceState () const -> DeviceState
auto	TakeDeviceControl () -> void
auto	StealDeviceControl () -> void
auto	ReleaseDeviceControl () -> void
auto	ChangeDeviceState (const DeviceStateTransition next) -> void
auto	SubscribeToDeviceStateChange (std::function< void(DeviceState)> callback) -> void
auto	UnsubscribeFromDeviceStateChange () -> void
auto	PropertyExists (const std::string &key) -> int
template<typename T >
auto	SetProperty (const std::string &key, T val) -> void
template<typename T >
auto	GetProperty (const std::string &key) const -> T
auto	GetPropertyAsString (const std::string &key) const -> std::string
auto	GetChannelInfo () const -> std::unordered_map< std::string, int >
auto	GetPropertyKeys () const -> std::vector< std::string >
template<typename T >
auto	SubscribeToPropertyChange (std::function< void(const std::string &key, T newValue)> callback) -> void
template<typename T >
auto	UnsubscribeFromPropertyChange () -> void
auto	SubscribeToPropertyChangeAsString (std::function< void(const std::string &key, std::string newValue)> callback) -> void
auto	UnsubscribeFromPropertyChangeAsString () -> void
auto	CycleLogConsoleSeverityUp () -> void
auto	CycleLogConsoleSeverityDown () -> void
auto	CycleLogVerbosityUp () -> void
auto	CycleLogVerbosityDown () -> void

Static Public Member Functions
static auto	NoProgramOptions () -> ProgOptions

Friends
auto	operator== (const Plugin &lhs, const Plugin &rhs) -> bool
auto	operator!= (const Plugin &lhs, const Plugin &rhs) -> bool
auto	operator<< (std::ostream &os, const Plugin &p) -> std::ostream &

Detailed Description

Base class for FairMQ plugins.

The plugin base class encapsulates the plugin metadata.

---

The documentation for this class was generated from the following files:

• fairmq/Plugin.h
• fairmq/Plugin.cxx
