#include <FairMQSplitter.h>
Inheritance diagram for FairMQSplitter:

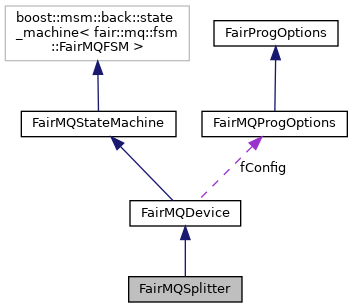

Collaboration diagram for FairMQSplitter:
Protected Member Functions | |
| virtual void | InitTask () |
| bool | HandleSingleData (std::unique_ptr< FairMQMessage > &, int) |
| bool | HandleMultipartData (FairMQParts &, int) |
 Protected Member Functions inherited from FairMQDevice | |
| virtual void | Init () |
| virtual void | Run () |
| virtual void | PreRun () |
| virtual bool | ConditionalRun () |
| virtual void | PostRun () |
| virtual void | Pause () |
| virtual void | ResetTask () |
| virtual void | Reset () |
Protected Attributes | |
| int | fMultipart |
| int | fNumOutputs |
| int | fDirection |
| std::string | fInChannelName |
| std::string | fOutChannelName |
| Protected Attributes inherited from FairMQDevice | |
| std::shared_ptr< FairMQTransportFactory > | fTransportFactory |
| Transport factory. | |
| std::unordered_map< FairMQ::Transport, std::shared_ptr< FairMQTransportFactory > > | fTransports |
| Container for transports. | |
| std::string | fId |
| Device ID. | |
| int | fNumIoThreads |
| Number of ZeroMQ I/O threads. | |
Additional Inherited Members | |
| Public Types inherited from FairMQStateMachine | |
| enum | Event { INIT_DEVICE, internal_DEVICE_READY, INIT_TASK, internal_READY, RUN, PAUSE, STOP, RESET_TASK, RESET_DEVICE, internal_IDLE, END, ERROR_FOUND } |
| Public Member Functions inherited from FairMQDevice | |
| FairMQDevice () | |
| Default constructor. | |
| FairMQDevice (const fair::mq::tools::Version version) | |
| Constructor that sets the version. | |
| FairMQDevice (const FairMQDevice &)=delete | |
| Copy constructor (disabled) | |
| FairMQDevice | operator= (const FairMQDevice &)=delete |
| Assignment operator (disabled) | |
| virtual | ~FairMQDevice () |
| Default destructor. | |
| void | CatchSignals () |
| Catches interrupt signals (SIGINT, SIGTERM) | |
| virtual void | LogSocketRates () |
| Outputs the socket transfer rates. | |
| void | SortChannel (const std::string &name, const bool reindex=true) |
| void | PrintChannel (const std::string &name) |
| template<typename Serializer , typename DataType , typename... Args> | |
| void | Serialize (FairMQMessage &msg, DataType &&data, Args &&... args) const |
| template<typename Deserializer , typename DataType , typename... Args> | |
| void | Deserialize (FairMQMessage &msg, DataType &&data, Args &&... args) const |
| int | Send (FairMQMessagePtr &msg, const std::string &chan, const int i=0) const |
| int | Receive (FairMQMessagePtr &msg, const std::string &chan, const int i=0) const |
| int | Send (FairMQMessagePtr &msg, const std::string &chan, const int i, int sndTimeoutInMs) const |
| int | Receive (FairMQMessagePtr &msg, const std::string &chan, const int i, int rcvTimeoutInMs) const |
| int | SendAsync (FairMQMessagePtr &msg, const std::string &chan, const int i=0) const |
| int | ReceiveAsync (FairMQMessagePtr &msg, const std::string &chan, const int i=0) const |
| int64_t | Send (FairMQParts &parts, const std::string &chan, const int i=0) const |
| int64_t | Receive (FairMQParts &parts, const std::string &chan, const int i=0) const |
| int64_t | Send (FairMQParts &parts, const std::string &chan, const int i, int sndTimeoutInMs) const |
| int64_t | Receive (FairMQParts &parts, const std::string &chan, const int i, int rcvTimeoutInMs) const |
| int64_t | SendAsync (FairMQParts &parts, const std::string &chan, const int i=0) const |
| int64_t | ReceiveAsync (FairMQParts &parts, const std::string &chan, const int i=0) const |
| auto | Transport () const -> const FairMQTransportFactory * |
| Getter for default transport factory. | |
| template<typename... Args> | |
| FairMQMessagePtr | NewMessage (Args &&... args) const |
| template<typename... Args> | |
| FairMQMessagePtr | NewMessageFor (const std::string &channel, int index, Args &&... args) const |
| template<typename T > | |
| FairMQMessagePtr | NewStaticMessage (const T &data) const |
| template<typename T > | |
| FairMQMessagePtr | NewStaticMessageFor (const std::string &channel, int index, const T &data) const |
| template<typename T > | |
| FairMQMessagePtr | NewSimpleMessage (const T &data) const |
| template<typename T > | |
| FairMQMessagePtr | NewSimpleMessageFor (const std::string &channel, int index, const T &data) const |
| FairMQUnmanagedRegionPtr | NewUnmanagedRegion (const size_t size) |
| FairMQUnmanagedRegionPtr | NewUnmanagedRegionFor (const std::string &channel, int index, const size_t size, FairMQRegionCallback callback=nullptr) |
| template<typename ... Ts> | |
| FairMQPollerPtr | NewPoller (const Ts &... inputs) |
| FairMQPollerPtr | NewPoller (const std::vector< const FairMQChannel *> &channels) |
| void | WaitForInitialValidation () |
| Waits for the first initialization run to finish. | |
| std::shared_ptr< FairMQTransportFactory > | AddTransport (const std::string &transport) |
| void | SetTransport (const std::string &transport="zeromq") |
| void | SetConfig (FairMQProgOptions &config) |
| const FairMQProgOptions * | GetConfig () const |
| template<typename T > | |
| void | OnData (const std::string &channelName, bool(T::*memberFunction)(FairMQMessagePtr &msg, int index)) |
| void | OnData (const std::string &channelName, InputMsgCallback callback) |
| template<typename T > | |
| void | OnData (const std::string &channelName, bool(T::*memberFunction)(FairMQParts &parts, int index)) |
| void | OnData (const std::string &channelName, InputMultipartCallback callback) |
| const FairMQChannel & | GetChannel (const std::string &channelName, const int index=0) const |
| virtual void | RegisterChannelEndpoints () |
| bool | RegisterChannelEndpoint (const std::string &channelName, uint16_t minNumSubChannels=1, uint16_t maxNumSubChannels=1) |
| void | PrintRegisteredChannels () |
| void | SetId (const std::string &id) |
| std::string | GetId () |
| const fair::mq::tools::Version | GetVersion () const |
| void | SetNumIoThreads (int numIoThreads) |
| int | GetNumIoThreads () const |
| void | SetPortRangeMin (int portRangeMin) |
| int | GetPortRangeMin () const |
| void | SetPortRangeMax (int portRangeMax) |
| int | GetPortRangeMax () const |
| void | SetNetworkInterface (const std::string &networkInterface) |
| std::string | GetNetworkInterface () const |
| void | SetDefaultTransport (const std::string &defaultTransport) |
| std::string | GetDefaultTransport () const |
| void | SetInitializationTimeoutInS (int initializationTimeoutInS) |
| int | GetInitializationTimeoutInS () const |
| Public Member Functions inherited from FairMQStateMachine | |
| FairMQStateMachine () | |
| int | GetInterfaceVersion () const |
| bool | ChangeState (int event) |
| bool | ChangeState (const std::string &event) |
| void | WaitForEndOfState (int event) |
| void | WaitForEndOfState (const std::string &event) |
| bool | WaitForEndOfStateForMs (int event, int durationInMs) |
| bool | WaitForEndOfStateForMs (const std::string &event, int durationInMs) |
| void | SubscribeToStateChange (const std::string &key, std::function< void(const State)> callback) |
| void | UnsubscribeFromStateChange (const std::string &key) |
| Static Public Member Functions inherited from FairMQDevice | |
| static bool | SortSocketsByAddress (const FairMQChannel &lhs, const FairMQChannel &rhs) |
| Public Attributes inherited from FairMQDevice | |
| std::unordered_map< std::string, std::vector< FairMQChannel > > | fChannels |
| Device channels. | |
| FairMQProgOptions * | fConfig |
| Program options configuration. | |
Detailed Description
- Since
- 2012-12-06
Member Function Documentation
◆ InitTask()
|
protectedvirtual |
Task initialization (can be overloaded in child classes) Executed in a worker thread
Reimplemented from FairMQDevice.
The documentation for this class was generated from the following files:
- fairmq/devices/FairMQSplitter.h
- fairmq/devices/FairMQSplitter.cxx
