Inheritance diagram for MyDevice:

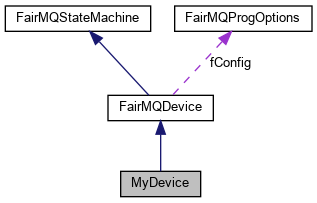

Collaboration diagram for MyDevice:
Public Member Functions | |
| void | SetRate (double r) |
| double | GetRate () |
| void | Print () |
 Public Member Functions inherited from FairMQDevice | |
| FairMQDevice () | |
| Default constructor. | |
| FairMQDevice (FairMQProgOptions &config) | |
| Constructor with external FairMQProgOptions. | |
| FairMQDevice (const fair::mq::tools::Version version) | |
| Constructor that sets the version. | |
| FairMQDevice (FairMQProgOptions &config, const fair::mq::tools::Version version) | |
| Constructor that sets the version and external FairMQProgOptions. | |
| FairMQDevice (const FairMQDevice &)=delete | |
| Copy constructor (disabled) | |
| FairMQDevice | operator= (const FairMQDevice &)=delete |
| Assignment operator (disabled) | |
| virtual | ~FairMQDevice () |
| Default destructor. | |
| void | CatchSignals () |
| Catches interrupt signals (SIGINT, SIGTERM) | |
| virtual void | LogSocketRates () |
| Outputs the socket transfer rates. | |
| void | SortChannel (const std::string &name, const bool reindex=true) |
| template<typename Serializer , typename DataType , typename... Args> | |
| void | Serialize (FairMQMessage &msg, DataType &&data, Args &&... args) const |
| template<typename Deserializer , typename DataType , typename... Args> | |
| void | Deserialize (FairMQMessage &msg, DataType &&data, Args &&... args) const |
| int | Send (FairMQMessagePtr &msg, const std::string &channel, const int index=0, int sndTimeoutInMs=-1) |
| int | Receive (FairMQMessagePtr &msg, const std::string &channel, const int index=0, int rcvTimeoutInMs=-1) |
| int | SendAsync (FairMQMessagePtr &msg, const std::string &channel, const int index=0) __attribute__((deprecated("For non-blocking Send |
| int | ReceiveAsync (FairMQMessagePtr &msg, const std::string &channel, const int index=0) __attribute__((deprecated("For non-blocking Receive |
| int64_t | Send (FairMQParts &parts, const std::string &channel, const int index=0, int sndTimeoutInMs=-1) |
| int64_t | Receive (FairMQParts &parts, const std::string &channel, const int index=0, int rcvTimeoutInMs=-1) |
| int64_t | SendAsync (FairMQParts &parts, const std::string &channel, const int index=0) __attribute__((deprecated("For non-blocking Send |
| int64_t | ReceiveAsync (FairMQParts &parts, const std::string &channel, const int index=0) __attribute__((deprecated("For non-blocking Receive |
| auto | Transport () const -> FairMQTransportFactory * |
| Getter for default transport factory. | |
| template<typename... Args> | |
| FairMQMessagePtr | NewMessage (Args &&... args) |
| template<typename... Args> | |
| FairMQMessagePtr | NewMessageFor (const std::string &channel, int index, Args &&... args) |
| template<typename T > | |
| FairMQMessagePtr | NewStaticMessage (const T &data) |
| template<typename T > | |
| FairMQMessagePtr | NewStaticMessageFor (const std::string &channel, int index, const T &data) |
| template<typename T > | |
| FairMQMessagePtr | NewSimpleMessage (const T &data) |
| template<typename T > | |
| FairMQMessagePtr | NewSimpleMessageFor (const std::string &channel, int index, const T &data) |
| FairMQUnmanagedRegionPtr | NewUnmanagedRegion (const size_t size) |
| FairMQUnmanagedRegionPtr | NewUnmanagedRegionFor (const std::string &channel, int index, const size_t size, FairMQRegionCallback callback=nullptr) |
| template<typename ... Ts> | |
| FairMQPollerPtr | NewPoller (const Ts &... inputs) |
| FairMQPollerPtr | NewPoller (const std::vector< FairMQChannel *> &channels) |
| void | WaitForInitialValidation () __attribute__((deprecated("This method will have no effect in future versions and will be removed. Instead subscribe for state changes and inspect configuration values."))) |
| Waits for the first initialization run to finish. | |
| std::shared_ptr< FairMQTransportFactory > | AddTransport (const fair::mq::Transport transport) |
| void | SetConfig (FairMQProgOptions &config) |
| Assigns config to the device. | |
| FairMQProgOptions * | GetConfig () const |
| Get pointer to the config. | |
| template<typename T > | |
| void | OnData (const std::string &channelName, bool(T::*memberFunction)(FairMQMessagePtr &msg, int index)) |
| void | OnData (const std::string &channelName, InputMsgCallback callback) |
| template<typename T > | |
| void | OnData (const std::string &channelName, bool(T::*memberFunction)(FairMQParts &parts, int index)) |
| void | OnData (const std::string &channelName, InputMultipartCallback callback) |
| FairMQChannel & | GetChannel (const std::string &channelName, const int index=0) |
| virtual void | RegisterChannelEndpoints () |
| bool | RegisterChannelEndpoint (const std::string &channelName, uint16_t minNumSubChannels=1, uint16_t maxNumSubChannels=1) |
| void | PrintRegisteredChannels () |
| void | SetId (const std::string &id) |
| std::string | GetId () |
| const fair::mq::tools::Version | GetVersion () const |
| void | SetNumIoThreads (int numIoThreads) |
| int | GetNumIoThreads () const |
| void | SetNetworkInterface (const std::string &networkInterface) |
| std::string | GetNetworkInterface () const |
| void | SetDefaultTransport (const std::string &name) |
| std::string | GetDefaultTransport () const |
| void | SetInitializationTimeoutInS (int initializationTimeoutInS) |
| int | GetInitializationTimeoutInS () const |
| void | SetTransport (const std::string &transport) |
| std::string | GetTransportName () const |
| Gets the default transport name. | |
| void | SetRawCmdLineArgs (const std::vector< std::string > &args) |
| std::vector< std::string > | GetRawCmdLineArgs () const |
| void | RunStateMachine () |
| template<class Rep , class Period > | |
| bool | WaitFor (std::chrono::duration< Rep, Period > const &duration) |
| void | AddChannel (const std::string &channelName, const FairMQChannel &channel) |
| Public Member Functions inherited from FairMQStateMachine | |
| int | GetInterfaceVersion () const |
| bool | ChangeState (int event) |
| bool | ChangeState (const std::string &event) |
| void | WaitForEndOfState (int event) |
| void | WaitForEndOfState (const std::string &event) |
| bool | WaitForEndOfStateForMs (int event, int durationInMs) |
| bool | WaitForEndOfStateForMs (const std::string &event, int durationInMs) |
| void | SubscribeToStateChange (const std::string &key, std::function< void(const State)> callback) |
| void | UnsubscribeFromStateChange (const std::string &key) |
| void | CallStateChangeCallbacks (const State state) const |
| std::string | GetCurrentStateName () const |
| int | GetCurrentState () const |
| bool | CheckCurrentState (int state) const |
| bool | CheckCurrentState (const std::string &state) const |
| void | ProcessWork () |
Additional Inherited Members | |
| Public Types inherited from FairMQStateMachine | |
| enum | Event { INIT_DEVICE, internal_DEVICE_READY, INIT_TASK, internal_READY, RUN, PAUSE, STOP, RESET_TASK, RESET_DEVICE, internal_IDLE, END, ERROR_FOUND } |
| enum | State { OK, Error, IDLE, INITIALIZING_DEVICE, DEVICE_READY, INITIALIZING_TASK, READY, RUNNING, PAUSED, RESETTING_TASK, RESETTING_DEVICE, EXITING } |
| Static Public Member Functions inherited from FairMQDevice | |
| static bool | SortSocketsByAddress (const FairMQChannel &lhs, const FairMQChannel &rhs) |
| Static Public Member Functions inherited from FairMQStateMachine | |
| static std::string | GetStateName (const State) |
| Public Attributes inherited from FairMQDevice | |
| int use timeout version with timeout | of: Send(msg |
| int use timeout version with timeout | channelA |
| int use timeout version with timeout | subchannelIndex |
| int use timeout version with timeout | timeout |
| int64_t use timeout version with timeout | of: Send(parts |
| int64_t use timeout version with timeout | channelA |
| int64_t use timeout version with timeout | subchannelIndex |
| int64_t use timeout version with timeout | timeout |
| std::unordered_map< std::string, std::vector< FairMQChannel > > | fChannels |
| Device channels. | |
| std::unique_ptr< FairMQProgOptions > | fInternalConfig |
| Internal program options configuration. | |
| FairMQProgOptions * | fConfig |
| Pointer to config (internal or external) | |
| Protected Member Functions inherited from FairMQDevice | |
| virtual void | Init () |
| Additional user initialization (can be overloaded in child classes). Prefer to use InitTask(). | |
| virtual void | InitTask () |
| Task initialization (can be overloaded in child classes) | |
| virtual void | Run () |
| Runs the device (to be overloaded in child classes) | |
| virtual void | PreRun () |
| Called in the RUNNING state once before executing the Run()/ConditionalRun() method. | |
| virtual bool | ConditionalRun () |
| Called during RUNNING state repeatedly until it returns false or device state changes. | |
| virtual void | PostRun () |
| Called in the RUNNING state once after executing the Run()/ConditionalRun() method. | |
| virtual void | Pause () |
| Handles the PAUSE state. | |
| virtual void | ResetTask () |
| Resets the user task (to be overloaded in child classes) | |
| virtual void | Reset () |
| Resets the device (can be overloaded in child classes) | |
| Protected Attributes inherited from FairMQDevice | |
| std::shared_ptr< FairMQTransportFactory > | fTransportFactory |
| Default transport factory. | |
| std::unordered_map< fair::mq::Transport, std::shared_ptr< FairMQTransportFactory > > | fTransports |
| Container for transports. | |
| std::string | fId |
| Device ID. | |
The documentation for this class was generated from the following file:
- fairmq/options/runConfigEx.cxx
